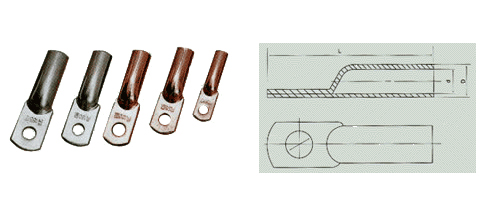

| DT（G）适用于装置中电线，电力电缆与电气设备的连接，采用（T2）铜管料压制表面镀锡。 |
| 型 号 |
φ |
D |
d |
L |
| DT(G)-10 |
6.2 |
8 |
5 |
52 |
| DT(G)-16 |
6.2 |
9 |
6 |
57 |
| DT(G)-25 |
6.2 |
10 |
7 |
62 |
| DT(G)-35 |
8.5 |
11 |
8 |
66 |
| DT(G)-50 |
8.5 |
13 |
10 |
72 |
| DT(G)-70 |
10.5 |
16 |
12 |
80 |
| DT(G)-95 |
10.5 |
18 |
14 |
85 |
| DT(G)-120 |
12.5 |
20 |
15 |
96 |
| DT(G)-150 |
12.5 |
23 |
17 |
102 |
| DT(G)-185 |
14.5 |
25 |
19 |
114 |
| DT(G)-240 |
16.5 |
27 |
21 |
120 |
| DT(G)-300 |
16.5 |
31 |
24 |
135 |
| DT(G)-400 |
18.5 |
34 |
26 |
150 |
| DT(G)-500 |
20.5 |
38 |
30 |
170 |
| DT(G)-630 |
22.5 |
45 |
35 |
210 |
| DT(G)-800 |
22.5 |
50 |
40 |
270 | |
|
| |
|
