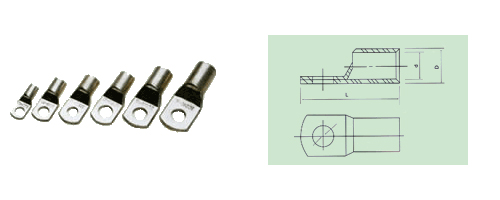

适用于标称截面1.5-1000mm2电力电缆式电线的铜导体与电气设备的连接，特点，采用管料含铜量>99.9%的高纯T2铜管制造，长期工作温度-55℃-150℃，表面镀锡。 |
| 型号 |
φ |
D |
d |
L |
| SC(JGK)-1.5 |
φf4.2,f5.2 |
3.5 |
1.8 |
18 |
| SC(JGK)-2.5 |
φf4.2,f5.2,f6.2 |
4 |
2.5 |
19 |
| SC(JGK)-4 |
φf5.2,f6.2 |
4.8 |
3.1 |
21 |
| SC(JGK)-6 |
φf5.2,f6.2,f8.2 |
5.5 |
3.8 |
24 |
| SC(JGK)-10 |
φf6.2,f8.2 |
6.8 |
4.8 |
25.5 |
| SC(JGK)-16 |
φf6.2,f8.2,f10.5 |
7.5 |
5.5 |
30.5 |
| SC(JGK)-25 |
φf6.2,f8.2,f10.5 |
9 |
7 |
34 |
| SC(JGK)-35 |
φf6.2,f8.2,f10.5,f12.5 |
10.5 |
8.2 |
38 |
| SC(JGK)-50 |
φf8.2,f10.5,f12.5 |
12.5 |
9.8 |
45 |
| SC(JGK)-70 |
φf8.2,f10.5,f12.5 |
14.5 |
11.5 |
50 |
| SC(JGK)-95 |
φf10.5,f12.5 |
17.5 |
13.8 |
55.5 |
| SC(JGK)-120 |
φf12.5,f16.5 |
19.5 |
125.5 |
63 |
| SC(JGK)-150 |
φf12.5,f16.5 |
21 |
16.5 |
71 |
| SC(JGK)-185 |
φf16.5 |
23.5 |
18.8 |
18 |
| SC(JGK)-240 |
φf16.5 |
26.5 |
21 |
92 |
| SC(JGK)-300 |
φf16.5,f20.5 |
30 |
24 |
102 |
| SC(JGK)-400 |
φf16.5,f20.5 |
34 |
26.5 |
113 |
| SC(JGK)-500 |
φf16.5,f20.5 |
38 |
30 |
123 |
| SC(JGK)-630 |
φf20.5 |
45 |
35 |
135 |
| SC(JGK)-800 |
φf22.5 |
50 |
39 |
170 |
| SC(JGK)-1000 |
φf22.5 |
56 |
44 |
200 | |
|
| |
|
